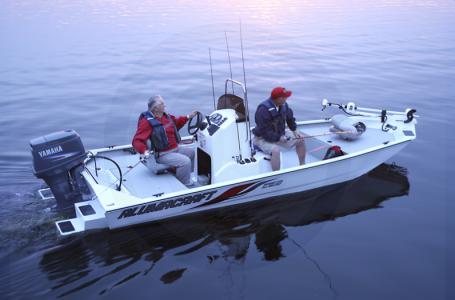

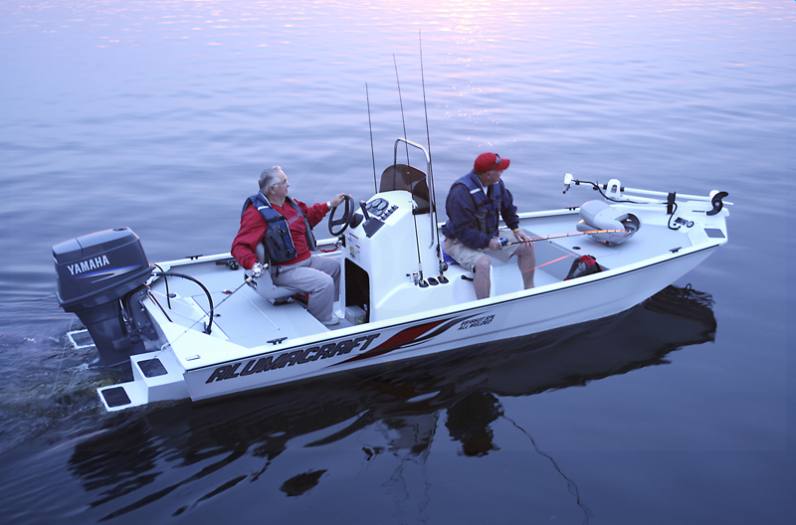

2009 Alumacraft MV 1860 AW CC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • New sleek side hull design
  • Longitude rib system
  • New 6º V-hull
Specifications
  • Model: MV 1860 AW CC
  • Length: 18' 0"
  • Bottom Width: 60"
  • Beam/Side Height: 86"/25"
  • Transom Height: 21"
  • Horsepower Maximum: 115 HP
  • Fuel Tank: 16 gal.
  • Weight: 905#
  • Capacity-Persons/motor,gear: 6/1600#
  • Hull Gauge: .102"
  • Hull Type-All Welded: Modified-V
  • Number of Ribs: Longitude Ribs
  • Center Console: Standard (+ 6 rod holders)
  • Windshield: Standard
  • Instrumentation: Speedometer, Tachometer, Voltmeter and Fuel Gauge
  • Livewell-aerated: Standard
  • Storage Compartments: 2
  • Seats: Console
  • Fishing Seats: 2
  • Seat Pedestal: 1 pin, 1 locking
  • Floor-Aluminum w/sides: Standard
  • Trolling Motor,Graph: Optional
  • Tri-Motor Harness: Standard with Tilt-Trim
  • Lights (Navigation, courtesy): Standard
  • Power Points: 2
  • Bilge Pump: Standard
  • Spray-In Floor Liner: Optional
  • Paint Color: Khaki
  • Camo Paint: Optional

Specifications

Engine
Max HP 115 hp
General
Length Overall 18 ft.
Beam 86 in.
Dry Weight 905 lbs.
Max Person Capacity 6
Fuel Capacity 16 gal
Max Carry Load 1600 lbs.

Compare Models

 Print








Year 2009
Manufacturer Alumacraft
Model MV 1860 AW CC
Style Fishing Boats
Engine
Engine Type
Engine Horsepower
Displacement
Cylinders
Max HP 115 hp
General
Length Overall 18 ft.
Beam 86 in.
Draft
Dry Weight 905 lbs.
Max Person Capacity 6
Fuel Capacity 16 gal
Impeller / Prop
Max Carry Load 1600 lbs.
