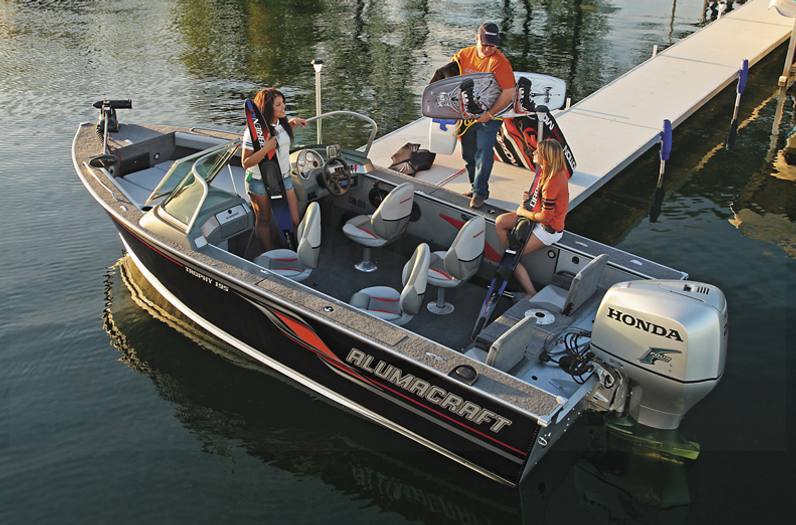

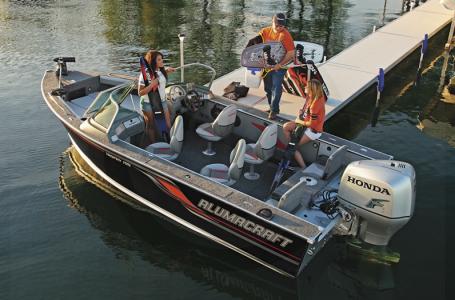

2009 Alumacraft Trophy 195
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • New top load rod storage. Same as Tournament Series boats.
  • New contemporary design console with new instrument and switch panels
  • Rigging hole with grommet in console for electronics wiring
  • New 21 gallon rear livewell
  • Larger trolling battery storage compartment
  • Color graphics added to side panels
  • Side panel readied for kicker motor controls
  • New color-matched high-back seats
  • New fuel outlet panel for main and kicker motors
  • New rigging hider in starboard top load gunnel
Dimensions
  • LENGTH: 19'8" (6.0m)
  • WIDTH–Maximum beam: 98" (2.5m)
  • DEPTH-Maximum/to floor: 47"/27" (1.2m/.69m)
  • TRANSOM–Width/height: 96"/25" (2.45m/.64m)
Capacities
  • HORSEPOWER–Maximum: 200 HP (149kw)
  • CAPACITY–Max. Persons: 8
  • CAPACITY–Max. Load-lbs.: 2000# (907kg)
  • WEIGHT–Lbs.: 1805# (818kg)
  • FUEL TANK: 38 gal (144L)
Deep-V 2XB Hull
  • HULL STYLE: 2XB twin-plated, deep-vee
  • THICKNESS bottom/sides: .100"/.080"
  • 2XB Bow–2nd plate: .100"
  • 2XB Bottom–2nd plate: .100"
Seating
  • Deluxe upholstered pedestal seats.
  • Driver’s seat is stationary w/slider, power height adjust
  • SEATS: 4+2 jump
  • PEDESTALS: 2 pwr, 2 fxd
Steering and Console
  • STEERING–No-feedback, hydraulic
  • CONSOLE–With tilt wheel, walk-thru tempered windshield, passenger console
  • KICKER-READY SIDE PANEL
  • SPEEDOMETER, Tachometer, voltmeter, fuel gauge, horn, blank
  • STEREO–AM/FM/CD with 2 speakers, Sirus ready
Construction
  • BOW CASTING PLATFORM–w/pedestal socket, foldable system converts to seating
  • AFT CASTING PLATFORM–w/pedestal socket
  • BOW RAILS
  • PULL-UP CLEATS–Flush mount
  • EXTRAS–Fire extinguisher, grab handles at each seat location, cup holders
Livewells
  • Bow Livewell–Gallons–w/h/l: 22 gal. 20"x11.5"x31"
  • Aft Livewell–Gallons–w/h/l: 17 gal.–13"x9"x31"
  • Aerated, bow insulated, bait systems, timers, light, remote drain (front)
Storage and Electrical
  • TOP SET–Convertible high-rise w/boot, quick-disconnect hardware, storage hider
  • STORAGE–Lockable, lighted 8' rod compartment; lockable glove box
  • DRY STORAGE/ICE CHEST–Lockable
  • GLOVE COMPARTMENT–Lockable
  • BATTERY STORAGE–Forward (2 batteries), aft (1 starting battery)
  • ELECTRICAL–Master electrical switch, power point outlet, circuit breakers
  • TROLLING SYSTEM–12/24V bow outlet
  • LIGHTS–Stowable running lights, 2 interior courtesy lights, livewell lights
  • DUAL FUEL OUTLET
  • BILGE PUMP(s)–Dual, 1 auto, 1 manual
  • EXTRAS–Fire extinguisher, grab handles, cup holders, flush mount cleats
Optional Equipment
  • TROLLING MOTOR, GRAPH–Minn Kota, Lowrance or Humminbird graph
  • VINYL FLOOR–Replaces carpeting on all horizontal surfaces
  • SEATS–Extra seat and pedestal, bow cushions
  • COVERS–Bow, mooring, snap covers; side, aft and windshield curtains
Paint and Carpet
  • Mica Black w/Silver metallic paint, Midnight Star Gray carpet
  • Olympic White w/Silver metallic paint, Midnight Star Gray carpet
  • Pacific Blue metallic w/Silver met. paint, Midnight Star Gray carpet
  • Victory Red w/Silver metallic paint, Midnight Star Gray carpet

Specifications

Engine
Max HP 200 hp (148 kw)
General
Length Overall 19 ft. 8 in. (6 m)
Beam 98 in. (2.5 m)
Dry Weight 1805 lbs. (818 kg)
Max Person Capacity 8
Fuel Capacity 38 gal (144 l)
Max Carry Load 2000 lbs. (907 lbs.)

Compare Models

 Print








Year 2009
Manufacturer Alumacraft
Model Trophy 195
Style Fishing Boats
Engine
Engine Type
Engine Horsepower
Displacement
Cylinders
Max HP 200 hp (148 kw)
General
Length Overall 19 ft. 8 in. (6 m)
Beam 98 in. (2.5 m)
Draft
Dry Weight 1805 lbs. (818 kg)
Max Person Capacity 8
Fuel Capacity 38 gal (144 l)
Impeller / Prop
Max Carry Load 2000 lbs. (907 lbs.)
